A compact 4.1kW stove with a low distance to combustibles thanks to its rear and lower heat-shield fitted as standard.
Being one of a tiny handful of compact EcoDesign Ready stoves fitted with an optional direct air intake, it satisfies many requirements of modern Eco-Designed buildings, new builds and small living spaces such as boats, yurts or cabins.

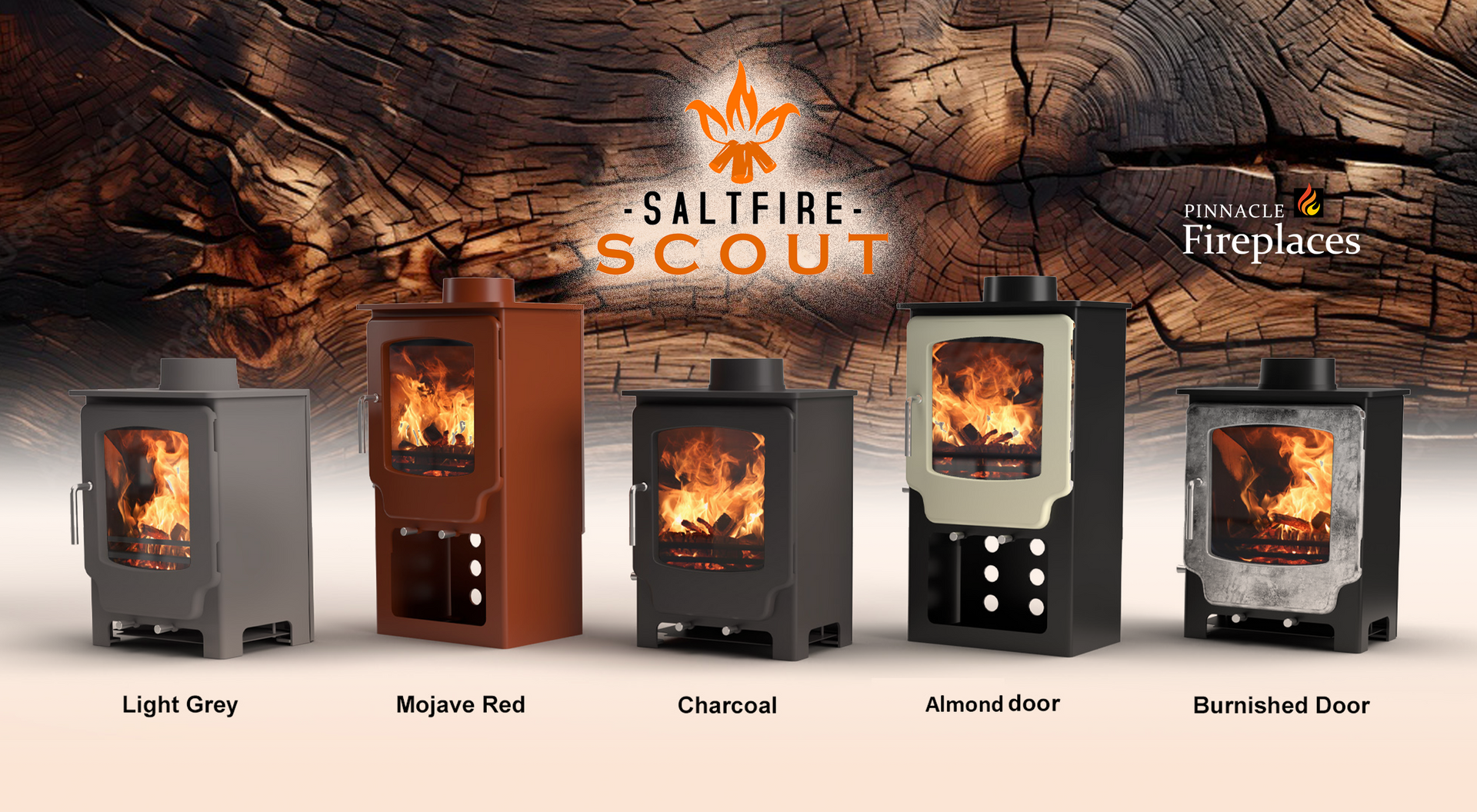

Available in: Metallic Black, Mojave Red. Charcoal, Light Grey and Burnished (door only).
For more information call us on 01354 680663 or email us at pinnacle.apw@gmail.com
Features
- Multi-fuel
- Eco Design 2022 Ready
- Nominal Heat Output: 4.1kW wood / 4.5kW mineral fuel
- High Efficiency: 75.4% wood / 79.2% mineral fuel
- Optimum Heat Output Range: 2-5 kW
- Advanced Airwash
- Ultra Clean Burn
- DEFRA Exempt for Smokeless Zones
- 5 Year Guarantee
- Other colours available
- Fire brick lined
- External Direct Air Supply
- Suitable For Use on 12mm Hearth
- Low Distance to Combustibles
- Top and Rear flue outet

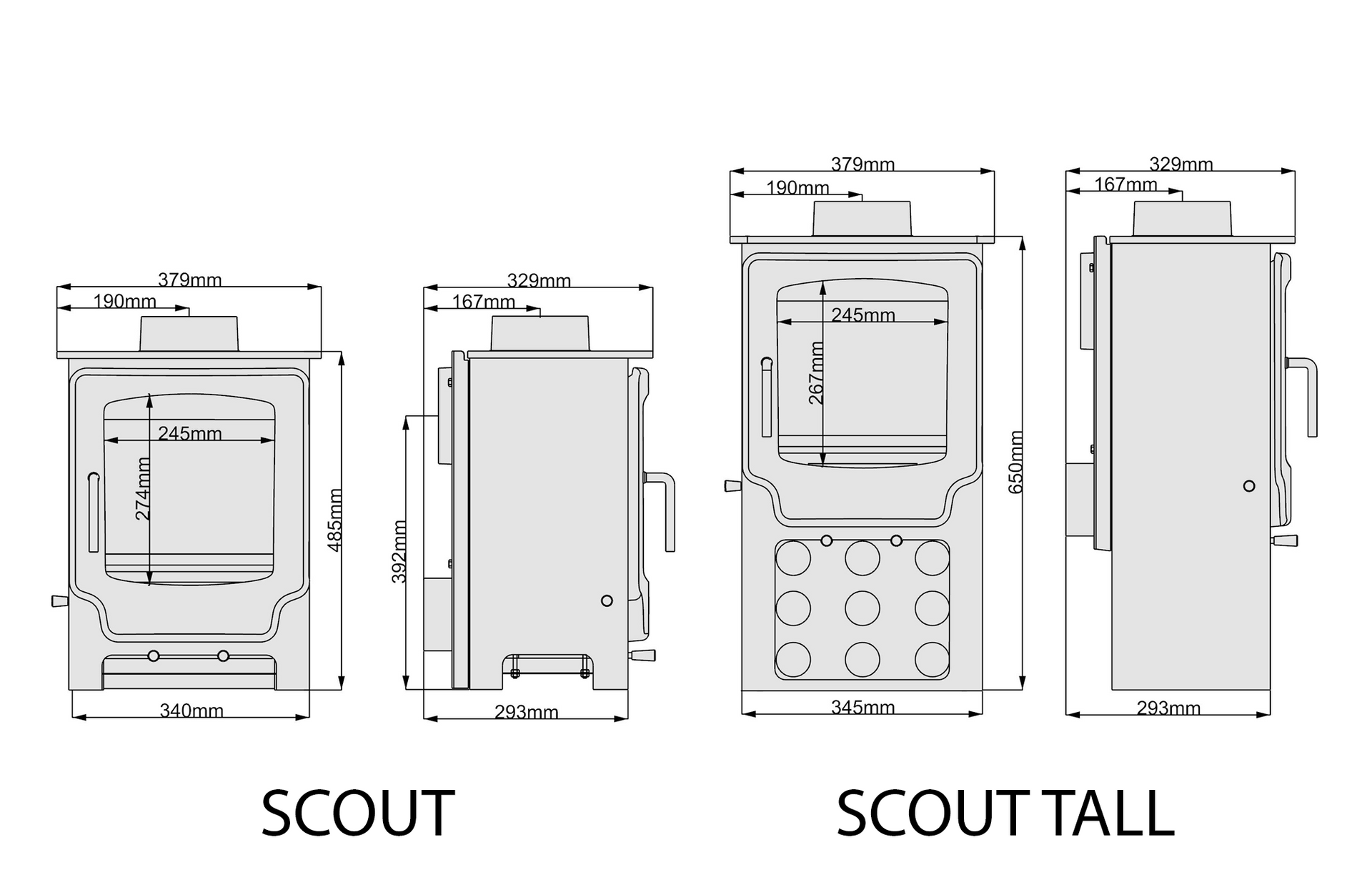

Specifications
Heat output: 4.3kW
Height: 650mm
Width: 379mm
Depth: 288mm
Approx weight: 65kg
Flue Size: 5" / 125mm
Max Log Size: 10" (270mm)
Rear, to centre of top flue: 127mm
Distance to combustibles: 500mm to side walls / 100mm to rear wall
